Description

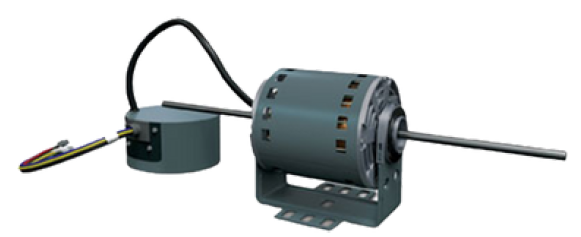

The new Eon 42 motor is the latest in the Eon line of energy efficient motors. The Eon 42 is a more energy efficient solution for the standard PSC motor found in many fan coils and blower deck applications today saving up to 56% of the electricity consumed by the motor. This motor offers simple installation along with a wide range of horsepowers, voltages, and mechanical features, truly making the Eon 42 the simplest and most cost effective upgrade solution.
- Variable Speed, Constant Torque motor
Designed for direct drive blower applications
120V or 208/240/277V AC single phase input, 50/60Hz
Available in 1/15hp (low speed only) as well as 1/8hp
and 1/4hp (high and low speed)
Operating speed range: High Speed – 300 – 1800 RPM
and Low Speed – 300 – 1200 RPM
NEMA 42 frame
UL and cUR recognized component
RoHS Compliant - Efficiencies exceeding 78%
Low Voltage AC or DC thermostat
inputs allow for use of existing system
controls
PWM Control allows for fully Variable
Speed retrofits
Reliable. Backed by over 20 years of
experience in ECM technology - Multiple input options
PWM Variable speed operation
3 Selectable Discrete Line Voltage
Speeds
24 Volt Discrete input Selection
6kV Surge Protection
BlaKBox enabled
Ball Bearing Construction - Fan Coils
Kitchen Ventilators
Air Curtains
Unit Heater/Cooler
